DSCP series silicon carbide ceramic slurry pump is a single stage, horizontal, cantilever, double shell structure of centrifugal pump, can also be called heavy slurry pump. This type of pump is large and equipped with heavy duty bracket, suitable for conveying strong abrasive, high concentration slurry or low concentration, high lift slurry, in the maximum allowable working pressure range of the pump, can be used in multiple stages. Widely used in metallurgy, mining, dredging, coal, power plants, building materials and other industrial sectors.
1. Product overview
DSCP series silicon carbide ceramic slurry pump is a single stage, horizontal, cantilever, double shell structure of centrifugal pump, can also be called heavy slurry pump. This type of pump is large and equipped with heavy duty bracket, suitable for conveying strong abrasive, high concentration slurry or low concentration, high lift slurry, in the maximum allowable working pressure range of the pump, can be used in multiple stages. Widely used in metallurgy, mining, dredging, coal, power plants, building materials and other industrial sectors.
2. Structure and material:
2.1 the overall structure: the use of modular design, high degree of standardization, strong adaptability, widely used.
2.2 double pump shell structure: the pump body and the pump cover (pressure layer) are equipped with replaceable flow parts (wear and corrosion resistant layer), flow parts are: impeller, front protection plate, sheath, rear protection plate.

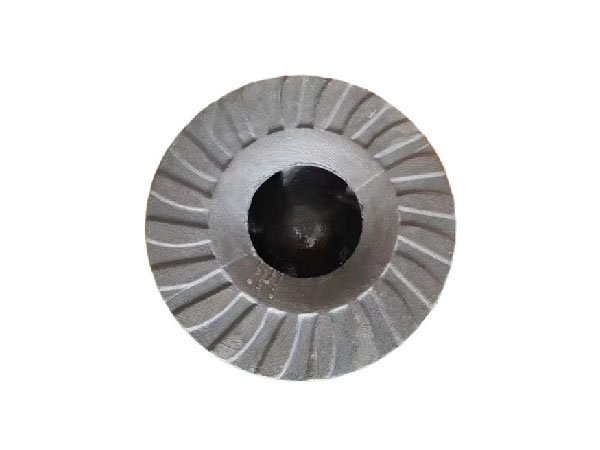

2.3 the material of the main components: pump body and pump cover using high-strength QT500-7; The flow parts (impeller, front guard plate, sheath, rear guard plate) are made of high temperature sintered silicon carbide ceramics, with wear resistance and corrosion resistance, and the service life is 3 to 10 times that of high chromium alloy and stainless steel.
2.4 the structure of the flow parts: the flow parts are inseparable double-layer structure, metal (armor or skeleton) and high temperature sintered silicon carbide ceramics closely combined. The part that is not in contact with the slurry (armor or skeleton) is a high-strength metal material, which has a pressure protection effect, and the pressure capacity is greater than 1MPa; The part in contact with the slurry (wear-resistant and corrosion-resistant layer) is a high temperature sintered silicon carbide ceramic, which has the function of wear-resistant, corrosion-resistant and impact-resistant.
2.5 product versatility: DSCP series pump and AH series slurry pump installation dimensions are exactly the same; The flow parts (impeller, front guard, jacket, rear guard) and the flow parts of the AH series slurry pump are completely universal and interchangeable.
2.6 a variety of bearing components: horizontal thin oil lubrication structure, cylinder-type grease lubrication structure, cylinder-type thin oil lubrication structure, suspension type high-power low speed structure; Pump shaft adopts dry structure and does not contact with slurry. Can be selected according to the working environment and customer needs.
2.7 sealing form: mechanical seal, packing seal, auxiliary impeller power seal.
2.8 transmission form: the pump shaft and impeller are threaded to prevent falling off. Pump and motor adopt a variety of transmission methods: coupling direct transmission, belt transmission (ZV, CV, CR, CL), gearbox transmission, coupler transmission, etc.
3、Parts array diagram

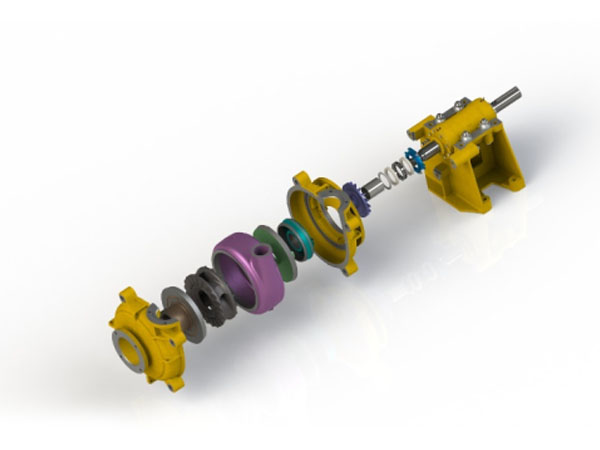

(1) sintered inner liner outer armor structure
No. | Accessory Name | Material | Remarks |
1 | Pump cover | QT500-7 | Depending on the working environment, the armor and skeleton can be made of stainless steel |

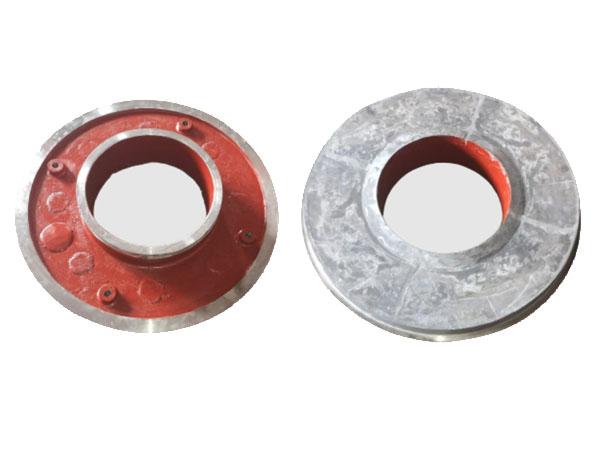

2 | Front guard | QT500-7(armor)7+HT SiC(wear and rot resistant layer) | |
3 | Impeller | A3(skeleton)+HT SiC(wear and rot resistant layer) | |
4 | Sheath | QT500-7(armor)7+HT SiC(wear and rot resistant layer) | |

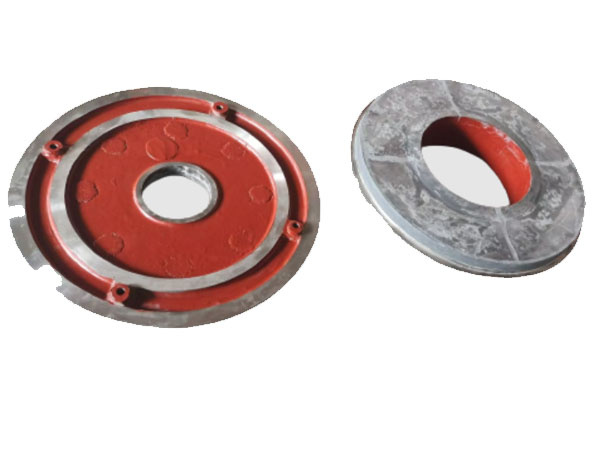

5 | Rear guard | Cr26(armor)7+HT SiC(wear and rot resistant layer) | |
6 | Pump body | QT500-7 | |
7 | impellers | Cr26 | |
8 | shaft sleeve | 3Cr13+SiC | |
9 | Pressure relief cover | QT500-7(armor)7+HT SiC(wear and rot resistant layer) |
4、Application
(1) Mining
Ball mill circulating pump: using low speed and large diameter impeller, can transport the maximum particle 20mm grinding materials and a small amount of steel balls
Foam transfer pump: with a fancy impeller to eliminate foam, the maximum foam coefficient can reach 3.0
tailings pump: the highest conveying pressure reaches more than 20kgf, and can be multi-level series
thickener underflow pump: long life can be achieved in high concentration, which is 6-10 times the life of ordinary materials
filter press feed pump: at low speed, large flow, high pressure at high speed
diaphragm pump Feed pump: suitable for high concentration slurry delivery
(2) Titanium dioxide industry
slag discharge
Lye and acid
Acid preparation, premixing, acid hydrolysis, filtration and concentration
waste acid concentration cycle
(3) Flue gas desulfurization
absorber slurry circulating pump
mill slurry pump, limestone slurry pump, gypsum discharge pump
filtrate pump, pit pump, emergency slurry pump
(4) Battery iron phosphate
Station process pumps for aging, slurry, resizing and washing water, thick slurry, etc.
(5) Compound phosphate fertilizer, phosphorus chemical industry
flash cooling, phosphate concentration cycle
Phosphogypsum tailings transportation
Pumps for extraction, press filtration, washing, concentration and purification sections
(6) Chemical metallurgy, alkali, salt chemical industry
Alkali plant, Salt chemical industry (potassium salt mine)
chemical acid and alkali smelting
(7) hydrometallurgy and non-ferrous metallurgy
wet smelting, lead and zinc pulp transport
non-ferrous smelting, gold, nickel and cobalt and other rare earth mines
(8) Alumina
intermediate pump
mother liquor pump
reactor feed pump

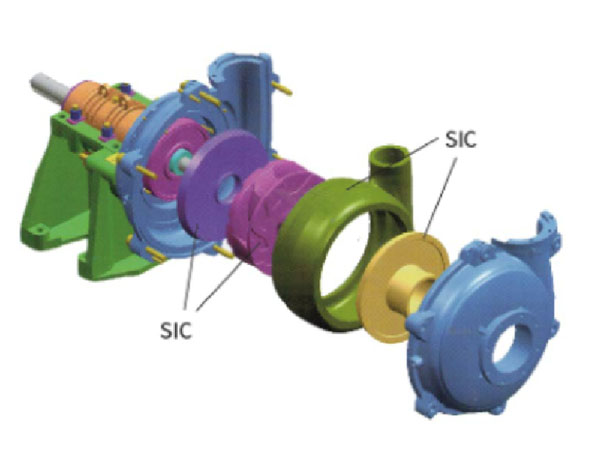

3、Parts array diagram
